TJ工业级条码打印机规格表
| 产品型号 | TJ-4020TN | TJ-4120TN | TJ-4021TNR | TJ-4121TNR |
|---|---|---|---|---|

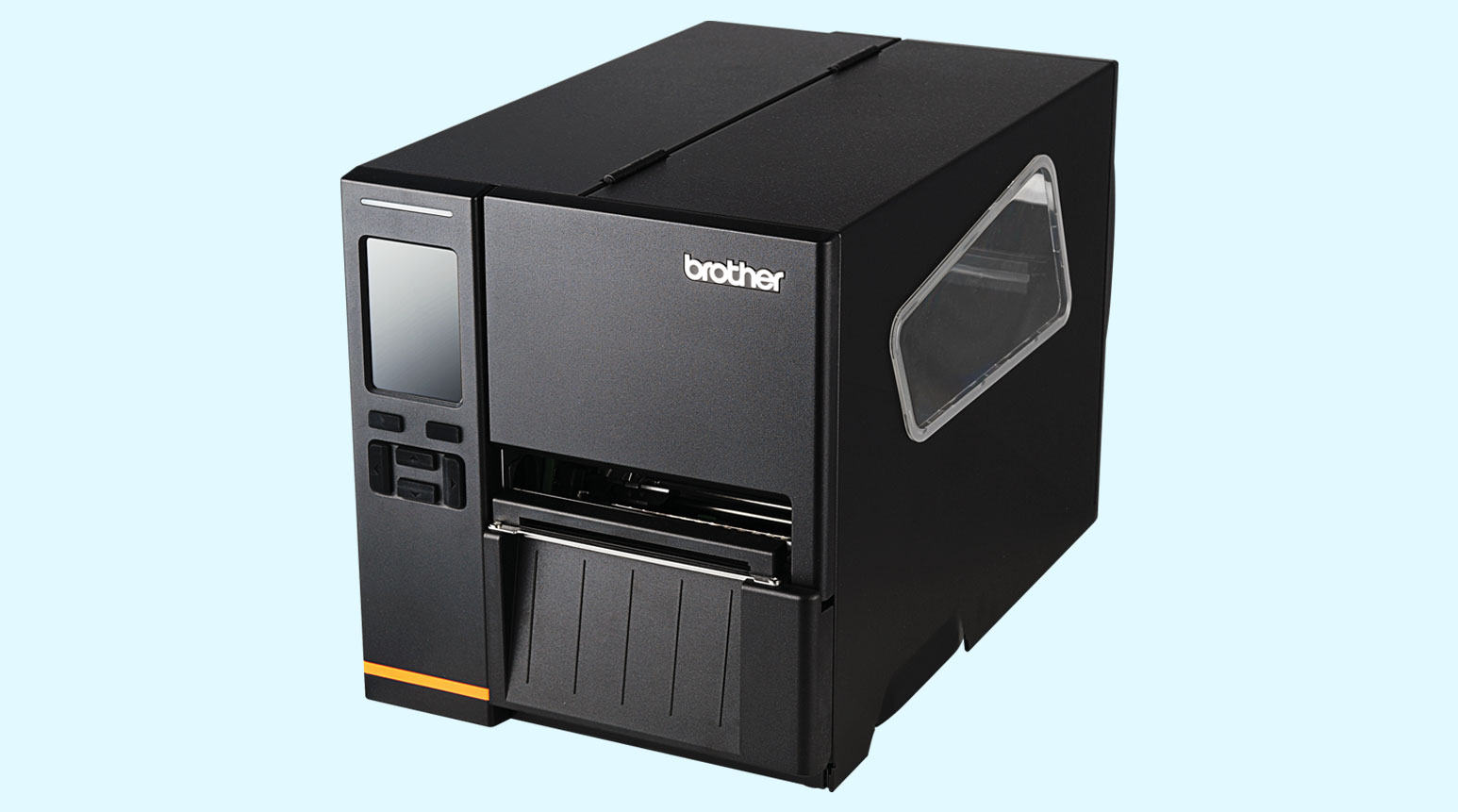

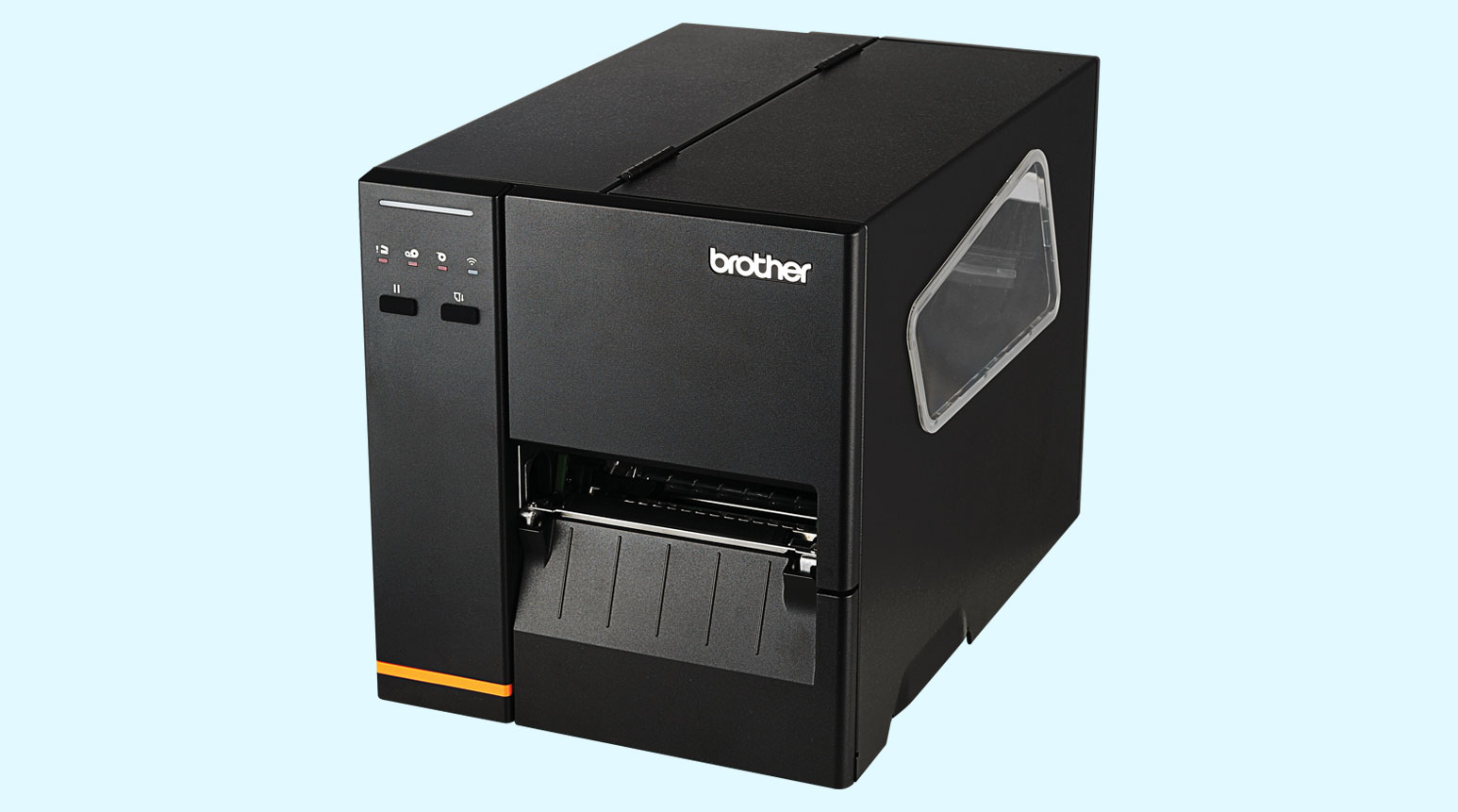

| 产品图 |  |
|
 |
 |
| 打印 | ||||
| 机器类型 | 工业级条码打印机 | 工业级条码打印机 | 工业级条码打印机 | 工业级条码打印机 |
| 打印技术 | 热敏 热转印 | 热敏 热转印 | 热敏 热转印 | 热敏 热转印 |
| 打印精度 | 203dpi | 300dpi | 203dpi | 300dpi |
| 最高打印速度 | 10 IPs | 7 IPs | 10 IPs | 7 IPs |
| 最大打印宽幅 | 107mm | 105.7mm | 107mm | 105.7mm |
| 最大打印长度 | 25,400mm (1000") | 11,430mm (450") | 25,400mm (1000") | 11,430mm (450") |
| 最小打印长度 | 连续打印5mm | 连续打印5mm | 连续打印5mm | 连续打印5mm |
| 传感器类型 | 间隙（透射），黑色标记（反射），带状编码器（反射），带状末端（透射），头部打开（透射） | 间隙（透射），黑色标记（反射），带状编码器（反射），带状末端（透射），头部打开（透射） | 间隙（透射），黑色标记（反射），带状编码器（反射），带状末端（透射），头部打开（透射） | 间隙（透射），黑色标记（反射），带状编码器（反射），带状末端（透射），头部打开（透射） |
| 传感器位置 | 可调：间隙，黑色标记 固定：色带编码器，色带末端，头部打开 | 可调：间隙，黑色标记 固定：色带编码器，色带末端，头部打开 | 可调：间隙，黑色标记 固定：色带编码器，色带末端，头部打开 | 可调：间隙，黑色标记 固定：色带编码器，色带末端，头部打开 |
| 释放模式 | 标准：连续，可撕下 可选：剥离、切割 | 标准：连续，可撕下 可选：剥离、切割 | 标准：连续，可撕下 | 标准：连续，可撕下 |
| 控制面板 | 4 个直观的图标指示器、1 个状态指示器、2 个按钮（pause、feed） | 4 个直观的图标指示器、1 个状态指示器、2 个按钮（pause、feed） | 1个显示屏，6 个操作按钮（2 个功能键和导航键），1 个3 色LED（红色、绿色、琥珀色） | 1个显示屏，6 个操作按钮（2 个功能键和导航键），1 个3 色LED（红色、绿色、琥珀色） |
| 接口 | ||||
| USB | USB 2.0 high speed (device) | USB 2.0 high speed (device) | USB 2.0 high speed (device) | USB 2.0 high speed (device) |
| USB host | Stand alone: USB keyboard, USB scanner Storage: USB thumb driver, clone and setup (class: TBC) | Stand alone: USB keyboard, USB scanner Storage: USB thumb driver, clone and setup (class: TBC) | Stand alone: USB keyboard, USB scanner Storage: USB thumb driver, clone and setup (class: TBC) | Stand alone: USB keyboard, USB scanner Storage: USB thumb driver, clone and setup (class: TBC) |
| Serial | RS-232 (Max. 115200 bps) | RS-232 (Max. 115200 bps) | RS-232 (Max. 115200 bps) | RS-232 (Max. 115200 bps) |
| 蓝牙 | - | - | - | - |
| 有线网络 | Ethernet 10/100 Mbps, ARP, MAC,BOOTP, DHCP, DNS, WINS, FTP SERVER, HTTP server, SNTP client, SMTP client,SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP | Ethernet 10/100 Mbps, ARP, MAC,BOOTP, DHCP, DNS, WINS, FTP SERVER, HTTP server, SNTP client, SMTP client,SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP | Ethernet 10/100 Mbps, ARP, MAC,BOOTP, DHCP, DNS, WINS, FTP SERVER, HTTP server, SNTP client, SMTP client,SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP | Ethernet 10/100 Mbps, ARP, MAC,BOOTP, DHCP, DNS, WINS, FTP SERVER, HTTP server, SNTP client, SMTP client,SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP |
| 无线网络 | Wi-Fi option(Slot-in 802.11a/b/g/n module) for those finished goods with Slot-in house already. | Wi-Fi option(Slot-in 802.11a/b/g/n module) for those finished goods with Slot-in house already. | Wi-Fi option(Slot-in 802.11a/b/g/n module) for those finished goods with Slot-in house already. | Wi-Fi option(Slot-in 802.11a/b/g/n module) for those finished goods with Slot-in house already. |
| WLAN Mode | WLAN: Compliant to IEEE 802.11a/b/g/n with dual band support, Supports Bandwidth in 5GHz: 20/40 MHz,802.11n Features: 802.11n HT20 Roaming without data lost in AP cover rage.Protocols: IPv4, ARP, ICMP, UDP, TCP, RAW, DHCP Client, DHCP FQDN Option, Unicast DHCP Offer | WLAN: Compliant to IEEE 802.11a/b/g/n with dual band support, Supports Bandwidth in 5GHz: 20/40 MHz,802.11n Features: 802.11n HT20 Roaming without data lost in AP cover rage.Protocols: IPv4, ARP, ICMP, UDP, TCP, RAW, DHCP Client, DHCP FQDN Option, Unicast DHCP Offer | WLAN: Compliant to IEEE 802.11a/b/g/n with dual band support, Supports Bandwidth in 5GHz: 20/40 MHz,802.11n Features: 802.11n HT20 Roaming without data lost in AP cover rage.Protocols: IPv4, ARP, ICMP, UDP, TCP, RAW, DHCP Client, DHCP FQDN Option, Unicast DHCP Offer | WLAN: Compliant to IEEE 802.11a/b/g/n with dual band support, Supports Bandwidth in 5GHz: 20/40 MHz,802.11n Features: 802.11n HT20 Roaming without data lost in AP cover rage.Protocols: IPv4, ARP, ICMP, UDP, TCP, RAW, DHCP Client, DHCP FQDN Option, Unicast DHCP Offer |
| WLAN security | Open, WEP-Open, WPA-PSK/WPA2(AES and TKIP) / Supports 802.11i security / -WPA2-Enterprise: EAP-FAST,EAP-TTLS, EAP-TLS, PEAPv0 | Open, WEP-Open, WPA-PSK/WPA2(AES and TKIP) / Supports 802.11i security / -WPA2-Enterprise: EAP-FAST,EAP-TTLS, EAP-TLS, PEAPv0 | Open, WEP-Open, WPA-PSK/WPA2(AES and TKIP) / Supports 802.11i security / -WPA2-Enterprise: EAP-FAST,EAP-TTLS, EAP-TLS, PEAPv0 | Open, WEP-Open, WPA-PSK/WPA2(AES and TKIP) / Supports 802.11i security / -WPA2-Enterprise: EAP-FAST,EAP-TTLS, EAP-TLS, PEAPv0 |
| 内存 | ||||
| SDRAM | 128MB | 128MB | 128MB | 128MB |
| FLASH | 128MB | 128MB | 128MB | 128MB |
| 工作特性 | ||||
| 工作温度 | 0 to 40ºC | 0 to 40ºC | 0 to 40ºC | 0 to 40ºC |
| 工作湿度 | 25% to 85% 无冷凝 | 25% to 85% 无冷凝 | 25% to 85% 无冷凝 | 25% to 85% 无冷凝 |
| 保存温度 | -40~60ºC | -40~60ºC | -40~60ºC | -40~60ºC |
| 保存湿度 | 10%~90% 无冷凝 | 10%~90% 无冷凝 | 10%~90% 无冷凝 | 10%~90% 无冷凝 |
| 供电 | ||||
| 电源 | 内部通用开关电源 输入：交流100-240V，2A，50/60Hz 输出：DC24V，3,75A，90W |
内部通用开关电源 输入：交流100-240V，2A，50/60Hz 输出：DC24V，3,75A，90W |
内部通用开关电源 输入：交流100-240V，2A，50/60Hz 输出：DC24V，3,75A，90W |
内部通用开关电源 输入：交流100-240V，2A，50/60Hz 输出：DC24V，3,75A，90W |
| 耗材 | ||||
| 类型 | 连续模切、扇形、黑标、扇形折叠、缺口 | 连续模切、扇形、黑标、扇形折叠、缺口 | 连续、模切、黑标、扇形折叠、缺口、RFID标签 | 连续、模切、黑标、扇形折叠、缺口、RFID标签 |
| Wound type | Outside wound | Outside wound | Outside wound | Outside wound |
| 耗材宽幅 | 撕下模式，剥离模式：20~120mm 切割方式：20~114mm |
撕下模式，剥离模式：20~120mm 切割方式：20~114mm |
撕下模式：20~120mm | 撕下模式：20~120mm |
| 耗材长度 | 撕下方式：50 mm~ 最大打印长度（包括衬垫） 剥离方式：25.4mm~120mm（含衬垫） | 撕下方式：50 mm~ 最大打印长度（包括衬垫） 剥离方式：25.4mm~120mm（含衬垫） | 撕下方式：50 mm~ 最大打印长度（包括衬垫） | 撕下方式：50 mm~ 最大打印长度（包括衬垫） |
| 厚度 | 普通标签0.06~0.28mm | 普通标签0.06~0.28mm | 金属RFID标签最大1.0mm（基于Omni ID IQ150（IQ600）标签测试） | 金属RFID标签最大1.0mm（基于Omni ID IQ150（IQ600）标签测试） |
| 最大直径 | 8" | 8" | 8" | 8" |
| 芯径 | 1"-3" | 1"-3" | 1"-3" | 1"-3" |
| 碳带规格 | ||||
| 类型 | Wax, Resin, Semi (Wax/Resin) | Wax, Resin, Semi (Wax/Resin) | Wax, Resin, Semi (Wax/Resin) | Wax, Resin, Semi (Wax/Resin) |
| Wound type | 内置或外置 | 内置或外置 | 内置或外置 | 内置或外置 |
| 碳带宽幅 | 40~110mm | 40~110mm | 40~110mm | 40~110mm |
| 建议纸芯宽度 | 1” I.D. core | 1” I.D. core | 1” I.D. core | 1” I.D. core |
| 内纸芯和色带长度 | 450M，1“芯（内外涂墨），最大外径81.3mm | 450M，1“芯（内外涂墨），最大外径81.3mm | 450M，1“芯（内外涂墨），最大外径81.3mm | 450M，1“芯（内外涂墨），最大外径81.3mm |
| RFID 规格（X0.12） | ||||
| RFID类型 | - | - | UHF RFID | UHF RFID |
| RFID标签长度 | - | - | 间距0.625英寸（12个或更长的RFID标签） | 间距0.625英寸（12个或更长的RFID标签） |
| 镶嵌 | - | - | 兼容EPC global Class1 Gen2（ISO 18000-63）兼容嵌体 | 兼容EPC global Class1 Gen2（ISO 18000-63）兼容嵌体 |
| 天线 | - | - | 天线耦合器位于可拆卸组件内，安装在现有标签上方，以支持金属RFID标签。 | 天线耦合器位于可拆卸组件内，安装在现有标签上方，以支持金属RFID标签。 |
| 无线电模块 | - | - | 支持EU (866-867MHz)和WW(902-928MHz) bands在同一模块 | 支持EU (866-867MHz)和WW(902-928MHz) bands在同一模块 |
| 校准 | - | - | 自动校准 | 自动校准 |
| 标签宽度 | - | - | 25.4mm~116mm | 25.4mm~116mm |
| 标签厚度 | - | - | 普通标签0.06~0.28mm对于金属上的RFID标签，不超过1.0mm。（如果客户要求厚度超过1.0mm的标签，则需要验证） | 普通标签0.06~0.28mm对于金属上的RFID标签，不超过1.0mm。（如果客户要求厚度超过1.0mm的标签，则需要验证） |
| 软件支持 | ||||
| 编辑软件 | BarTender UltraLite | BarTender UltraLite | BarTender UltraLite | BarTender UltraLite |
| MAC 打印驱动 | MAC OS V10.6 –10.15 macOS 10.15.x / 10.14.x / 10.13.x / 10.12.x / 10.11.x | MAC OS V10.6 –10.15 macOS 10.15.x / 10.14.x / 10.13.x / 10.12.x / 10.11.x | MAC OS V10.6 –10.15 macOS 10.15.x / 10.14.x / 10.13.x / 10.12.x / 10.11.x | MAC OS V10.6 –10.15 macOS 10.15.x / 10.14.x / 10.13.x / 10.12.x / 10.11.x |
| Linux 打印驱动 | 支持 32-bit 和 64-bit OS: (1). Ubuntu V11.04-16.04 (2). Fedora 24 (3). SUSE Linux Enterprise Server 12 (4). CentOS Linux 7.2 (5). Red Hat Enterprise 7.3 | 支持 32-bit 和 64-bit OS: (1). Ubuntu V11.04-16.04 (2). Fedora 24 (3). SUSE Linux Enterprise Server 12 (4). CentOS Linux 7.2 (5). Red Hat Enterprise 7.3 | 支持 32-bit 和 64-bit OS: (1). Ubuntu V11.04-16.04 (2). Fedora 24 (3). SUSE Linux Enterprise Server 12 (4). CentOS Linux 7.2 (5). Red Hat Enterprise 7.3 | 支持 32-bit 和 64-bit OS: (1). Ubuntu V11.04-16.04 (2). Fedora 24 (3). SUSE Linux Enterprise Server 12 (4). CentOS Linux 7.2 (5). Red Hat Enterprise 7.3 |
| 设置工具 | BPM (Brother Printer Management Tool) / Windows Vista / Windows 7 / 8, 8.1 / 10 / Windows Server 2008/ 2008 R2 (32bit and 64bit OS), 2012, 2016, 2019 standard versions | BPM (Brother Printer Management Tool) / Windows Vista / Windows 7 / 8, 8.1 / 10 / Windows Server 2008/ 2008 R2 (32bit and 64bit OS), 2012, 2016, 2019 standard versions | BPM (Brother Printer Management Tool) / Windows Vista / Windows 7 / 8, 8.1 / 10 / Windows Server 2008/ 2008 R2 (32bit and 64bit OS), 2012, 2016, 2019 standard versions | BPM (Brother Printer Management Tool) / Windows Vista / Windows 7 / 8, 8.1 / 10 / Windows Server 2008/ 2008 R2 (32bit and 64bit OS), 2012, 2016, 2019 standard versions |
| Mobile SDK | - | - | - | - |
| Mobile Transfer Express Mobile Deploy | - | - | - | - |
| Windows SDK | Supported 32-bit and 64-bit OS: Server 2019 (X1.0, 2019/8/20) / Windows 10 and Server 2016 / Windows 8.1 and Server 2012 R2 / Windows 8 and Server 2012 / Windows 7 and Server 2008 R2 / Windows Vista and Server 2008 | Supported 32-bit and 64-bit OS: Server 2019 (X1.0, 2019/8/20) / Windows 10 and Server 2016 / Windows 8.1 and Server 2012 R2 / Windows 8 and Server 2012 / Windows 7 and Server 2008 R2 / Windows Vista and Server 2008 | Supported 32-bit and 64-bit OS: Server 2019 (X1.0, 2019/8/20) / Windows 10 and Server 2016 / Windows 8.1 and Server 2012 R2 / Windows 8 and Server 2012 / Windows 7 and Server 2008 R2 / Windows Vista and Server 2008 | Supported 32-bit and 64-bit OS: Server 2019 (X1.0, 2019/8/20) / Windows 10 and Server 2016 / Windows 8.1 and Server 2012 R2 / Windows 8 and Server 2012 / Windows 7 and Server 2008 R2 / Windows Vista and Server 2008 |
| Android SDK | Brother Print SDK for Android™ TYPE B Development Tool: Eclipse+ Android™ SDK ver 21, Android Studio 3.2.1 Supported OS: V5 – V10 | Brother Print SDK for Android™ TYPE B Development Tool: Eclipse+ Android™ SDK ver 21, Android Studio 3.2.1 Supported OS: V5 – V10 | Brother Print SDK for Android™ TYPE B Development Tool: Eclipse+ Android™ SDK ver 21, Android Studio 3.2.1 Supported OS: V5 – V10 | Brother Print SDK for Android™ TYPE B Development Tool: Eclipse+ Android™ SDK ver 21, Android Studio 3.2.1 Supported OS: V5 – V10 |
| iOS SDK | Brother Print SDK for iPhone/iPad TYPE Development Tool: Xcode 7, 8, 9, 10, 11.2 Supported OS: V9-V13.2 Supported Interface: Wireless LAN, Bluetooth®, Wired LAN Target development languages: Objective-C | Brother Print SDK for iPhone/iPad TYPE Development Tool: Xcode 7, 8, 9, 10, 11.2 Supported OS: V9-V13.2 Supported Interface: Wireless LAN, Bluetooth®, Wired LAN Target development languages: Objective-C | Brother Print SDK for iPhone/iPad TYPE Development Tool: Xcode 7, 8, 9, 10, 11.2 Supported OS: V9-V13.2 Supported Interface: Wireless LAN, Bluetooth®, Wired LAN Target development languages: Objective-C | Brother Print SDK for iPhone/iPad TYPE Development Tool: Xcode 7, 8, 9, 10, 11.2 Supported OS: V9-V13.2 Supported Interface: Wireless LAN, Bluetooth®, Wired LAN Target development languages: Objective-C |
| Win CE SDK | Supports WinCE 5.0, WinCE6.0, Windows Mobile 6.0, and Windows Mobile 6.5 | Supports WinCE 5.0, WinCE6.0, Windows Mobile 6.0, and Windows Mobile 6.5 | Supports WinCE 5.0, WinCE6.0, Windows Mobile 6.0, and Windows Mobile 6.5 | Supports WinCE 5.0, WinCE6.0, Windows Mobile 6.0, and Windows Mobile 6.5 |
| Windows Phone | V8.1 | V8.1 | V8.1 | V8.1 |
| 支持指令 | FBPL-EZS (TSPL2, EPL2, ZPL2,SBPL) for JP SKU only, FBPL-EZD (TSPL2, EPL2, ZPL2, DPL) for global excludes JP | FBPL-EZS (TSPL2, EPL2, ZPL2,SBPL) for JP SKU only, FBPL-EZD (TSPL2, EPL2, ZPL2, DPL) for global excludes JP | FBPL-EZS (TSPL2, EPL2, ZPL2,SBPL) for JP SKU only, FBPL-EZD (TSPL2, EPL2, ZPL2, DPL) for global excludes JP | FBPL-EZS (TSPL2, EPL2, ZPL2,SBPL) for JP SKU only, FBPL-EZD (TSPL2, EPL2, ZPL2, DPL) for global excludes JP |
| Support Tool | CommTool (Brother Communication Tool) | CommTool (Brother Communication Tool) | CommTool (Brother Communication Tool) | CommTool (Brother Communication Tool) |
| 条码 | 1D barcode: Code128UCC, Code128 subsets A、B、C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D barcode: CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39 | 1D barcode: Code128UCC, Code128 subsets A、B、C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D barcode: CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39 | 1D barcode: Code128UCC, Code128 subsets A、B、C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D barcode: CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39 | 1D barcode: Code128UCC, Code128 subsets A、B、C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D barcode: CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39 |
| 字库 | 8 alpha-numeric bitmap fonts, Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font | 8 alpha-numeric bitmap fonts, Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font | 8 alpha-numeric bitmap fonts, Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font | 8 alpha-numeric bitmap fonts, Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font |
| 其他 | ||||
| 重量 | 9.2千克 剥离方式：9.9kg 刀具型号：9.6kg 毛重：11.2kg |
9.2千克 剥离方式：9.9kg 刀具型号：9.6kg 毛重：11.2kg |
9.9千克（无剥离机和切刀的支撑） 毛重：12.1kg |
9.9千克（无剥离机和切刀的支撑） 毛重：12.1kg |
| 尺寸（宽×高×长）（mm） | 248×274×436 Peeler mode: 248×274×436 Cutter mode: 248×274×448 |
248×274×436 Peeler mode: 248×274×436 Cutter mode: 248×274×448 |
248×274×443 (No support of Peeler & Cutter) | 248×274×443 (No support of Peeler & Cutter) |
| 随包装 | 快速入门指南，PSG（不同SKU），电池拆卸/插入（不同SKU），保修卡（不同SKU），USB端口电缆（1.5米），电源线 | 快速入门指南，PSG（不同SKU），电池拆卸/插入（不同SKU），保修卡（不同SKU），USB端口电缆（1.5米），电源线 | 快速入门指南，PSG（不同SKU），电池拆卸/插入（不同SKU），保修卡（不同SKU），USB端口电缆（1.5米），电源线 | 快速入门指南，PSG（不同SKU），电池拆卸/插入（不同SKU），保修卡（不同SKU），USB端口电缆（1.5米），电源线 |
| 外箱（宽×高×长）（mm） | 350×370×525mm(L) | 350×370×525mm(L) | 350×370×525mm(L) | 350×370×525mm(L) |
